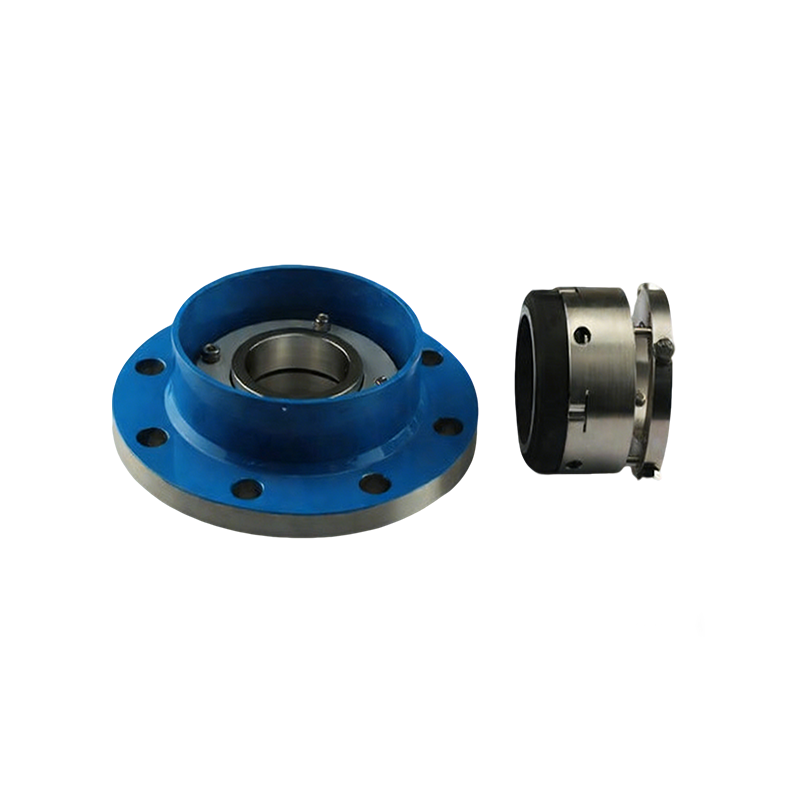

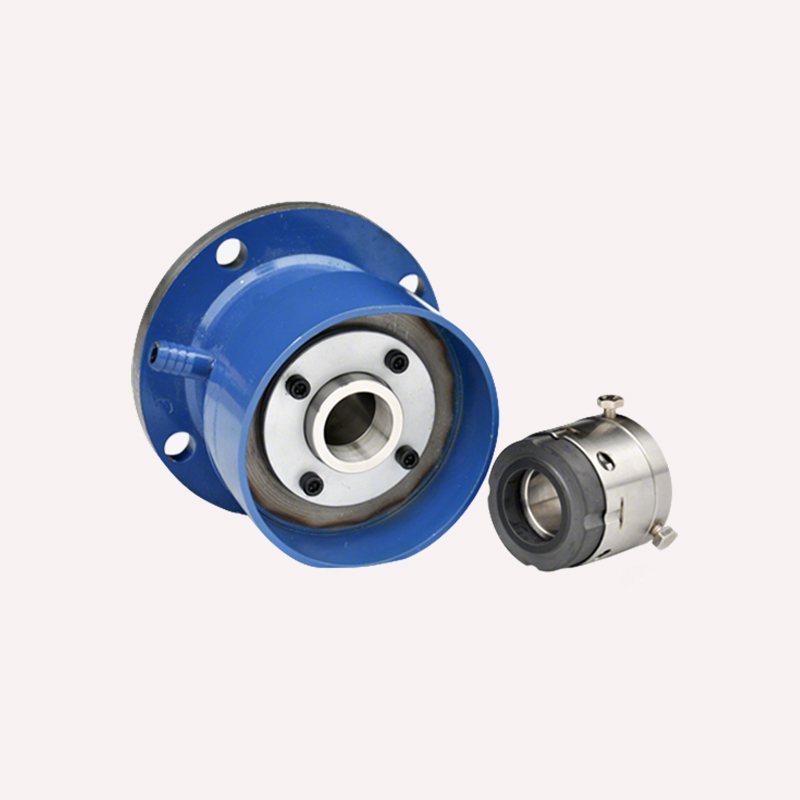

204B is a single-face, multiple spring, balanced, bi-directional mechanical seal.This mechanical seal features a multi-spring design, which ensures an even load distribution on the sealing faces. All springs are adjustable, providing a long service life.The seal can be lubricated by an integral oil reservoir, or it can operate dry without water. No external flushing fluid is required.
It is primarily used in top-entry agitators and equipment where leakage is not strictly controlled, such as stainless steel reactors, and wastewater treatment systems.
Mechanical Seal, Mechanical Seal, mechanical seal for mixer &agitator
204B
Materials:
Sealing ring:Carbon,SiC,TC
Elastomers: PTFE,FKM
Springs: 304,316
Metal Parts: 304,316
Process condition:
Pressure：0～0.8Mpa
Temperature：-20℃～150℃
Line speed：≤3m/s
Shaft size：30～300mm
Mediums: oil, acid, alkali and polymer suspensions.
Application:Top driven vertical type agitation equipment.
Industrial Standards: HG5-754-78 and HG2098-91
