NVS-2 | Carbon floating ring seal

Pressure: 0~4Mpa

Temperature: -100~500℃

Speed: ≤300m/s

Shaft size : 30~800mm

Radial play: ≥±1.5 mm

Axial movement: theoretically unlimited

Metal parts: 1Cr13,304,316L,2205,2507, TA2,C276

Seal ring: Graphite, PTFE compound

Elastomer ring: FKM,EPDM,PTFE,FFKM

Spring: 316L,Hastelloy C

Features

Integral housing structure

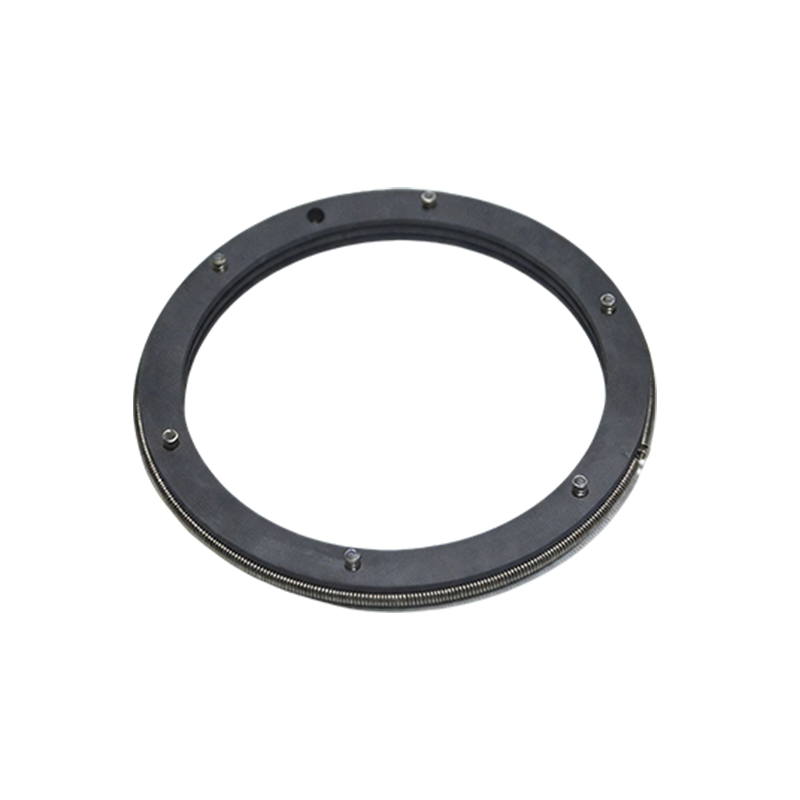

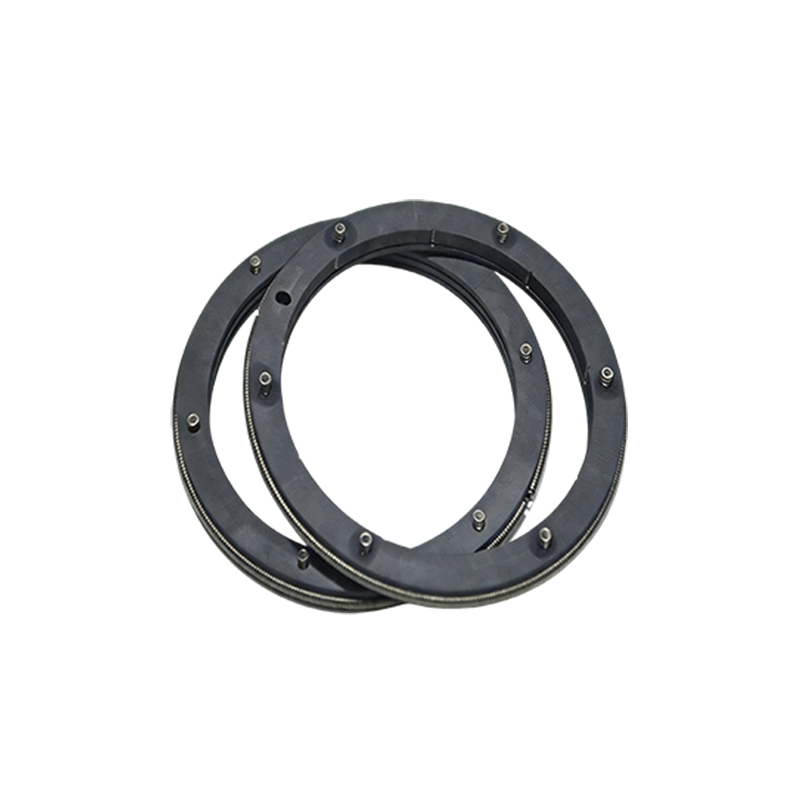

Carbon rings with multiple spring

Extremely small operating clearance for minimized leakage

Non-contact, dry-running operation

Seal rings automatically adapt to operating conditions



Categories: , Tag:

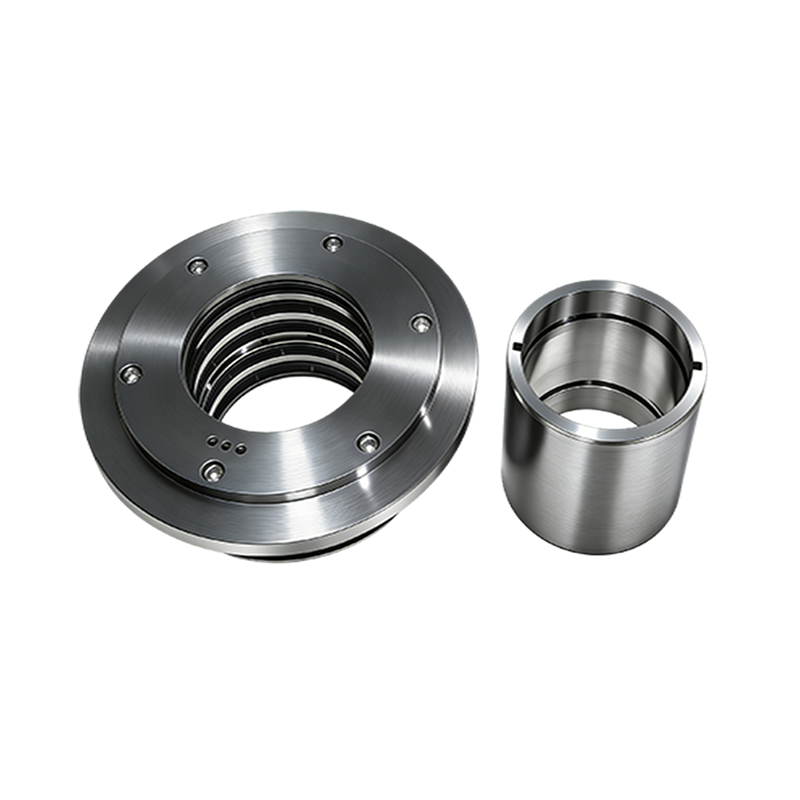

NVS-2 is a dry-running carbon floating ring seal, mainly consisting of an integral end cover, a shaft sleeve, and seal rings. The seal rings feature a multiple spring design on the sealing faces, using both process pressure and spring force to achieve face contact and reduce leakage.The NVS-2 have self-adjusting carbon rings ensure stable sealing performance during operation.Carbon floating ring seal solutions like NVS-2 are widely applied in compressors, turbines, and other rotating machinery.
