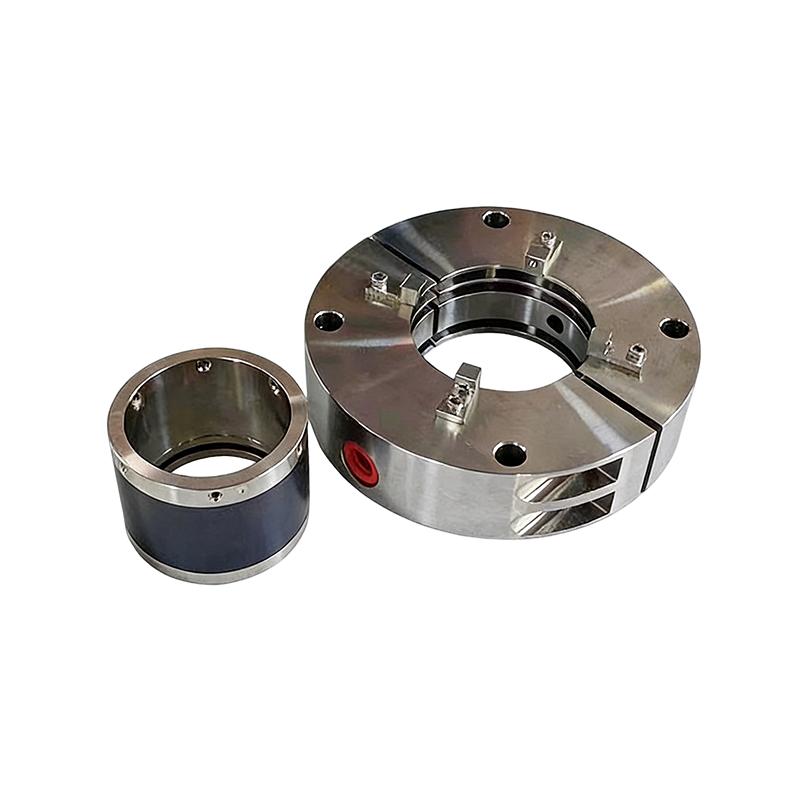

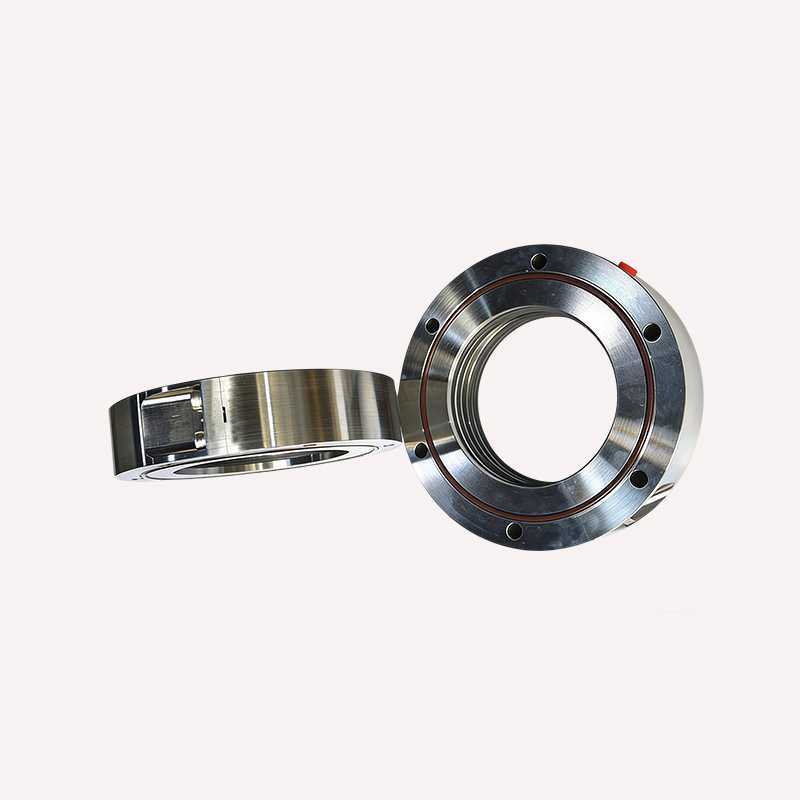

NVS-5 is a dry running seal.This carbon floating ring seal consists of a seal housing, shaft sleeve, and multi-part seal rings, radially cut on process side, overlapped mortised with gas tight joints on atmosphere side (adjusting).NVS-5 is Split housing design,easy installation,maintainability,the carbon rings are self-adjusting seal rings.Carbon floating ring seals are used in turbines, compressors, and other rotating machines.Can be used as a replacement for Burgmann WD200/500 type.
Carbon floating ring seal
NVS-5|Carbon floating ring seal|Replacing EagleBurgmann WD200/500
Pressure: 0~2.0MPa
Temperature: -100~590℃
Speed: ≤115m/s
Shaft size : 45~340mm
Radial play: ≥±2.5 mm
Axial movement: theoretically unlimited
Metal parts: 1Cr13,304,316L,2205,2507, TA2,C276
Seal ring: Graphite, PTFE compound
Elastomer ring: FKM,EPDM,PTFE,FFKM
Spring: 316L,Hastelloy C
Features
Split-type housing structure
Segmented, multi-piece seal rings
Extremely small operating clearance for minimized leakage
Non-contact, dry-running operation
Seal rings automatically adapt to operating conditions
Benefits
Simplified installation due to split housing design, eliminating the need for shaft disassembly
Extended service life under continuous operation
Easy maintenance and servicing
Segmented seal rings allow quick and convenient replacement
