ZGJ

Materials:

Sealing ring:TC,SiC

Elastomers: FKM,FFKM,EPDM

Springs: 316,314,HC276

Metal Parts:410,316L,2507,2205,1.4529

Industrial Standards: DIN24960, ISO3069, ANSI B73.1M

Process condition:

Solid Capacity:≤ 30%

Pressure:0~1.2Mpa

Temperature:-20℃~130℃

Speed:≤3000r/min

Shaft size:28~220mm

Mediums:  paper pulp, coal cinder, slag, ash and other fluids with solid powder.

Application:Paper-making Equipment, Alumina Plants, Flue Gas Desulphurization, Deashing System and Slurry Pumps, FGD Mechanical Seal.

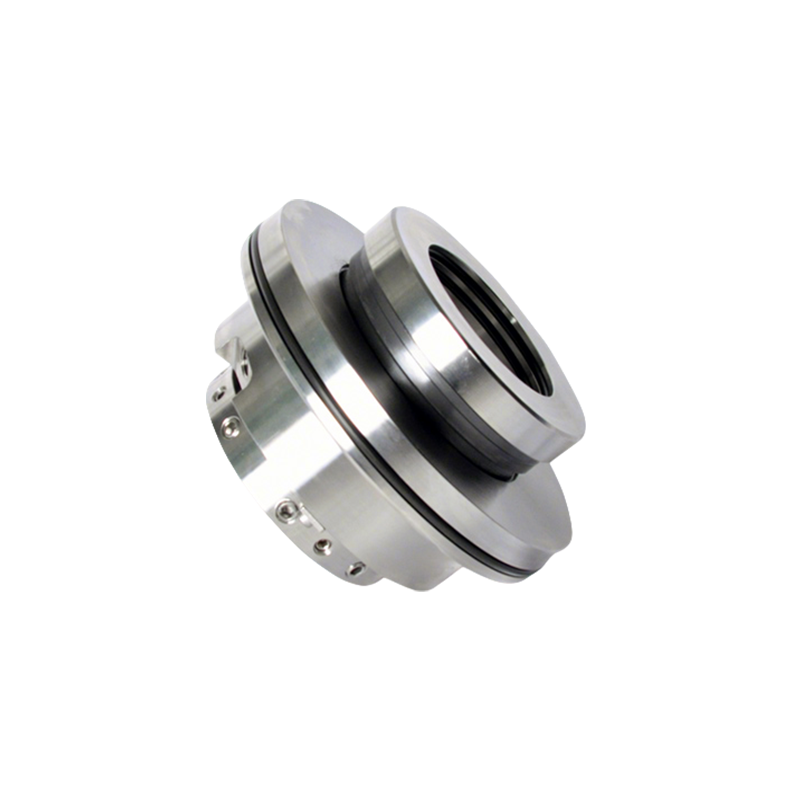

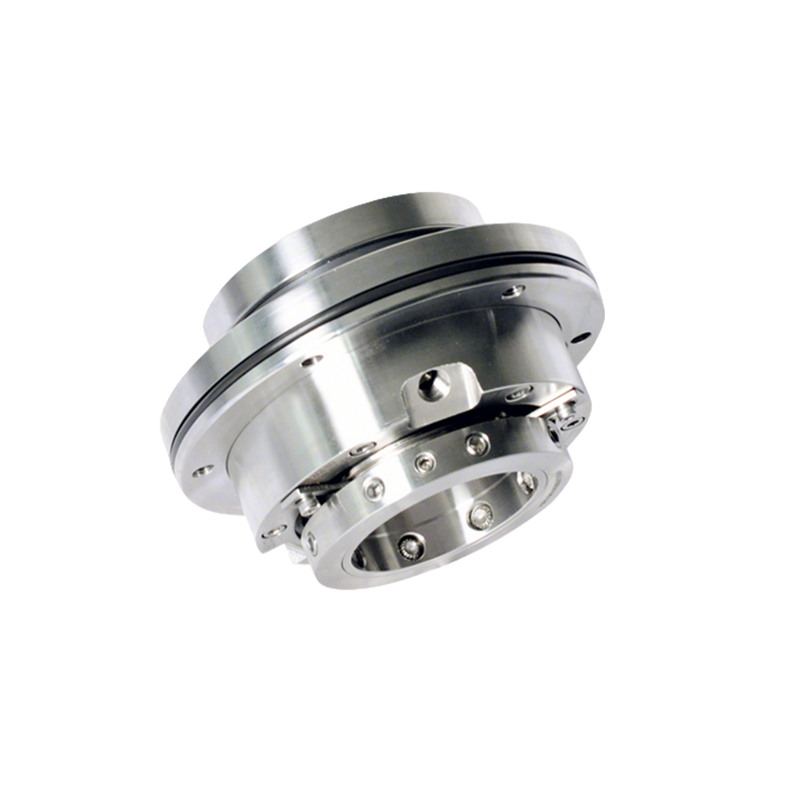

ZGJ is Single end, multiple springs, balanced, independent rotary direction,ZGJ is cartridge designed and easy for installation. The compensation components are supporting the sleeve. The springs are not touching the subjects so that there will be no jam caused by the high viscosity and crystallization active content. This makes sure the flexibility of the compensation ring and as a result, it lasts the lifetime of the whole component.ZGJ mechanical seal mainly used in paper-making equipment, alumina plants, flue gas desulphurization (AKA FGD), deashing system (for power plants) and slurry pumps for industries such as coal washery, mining, sewage treatment, paper making, metallurgy, power plants, and chemical engineering. This seal works as an alternative to similar products of Warman.
