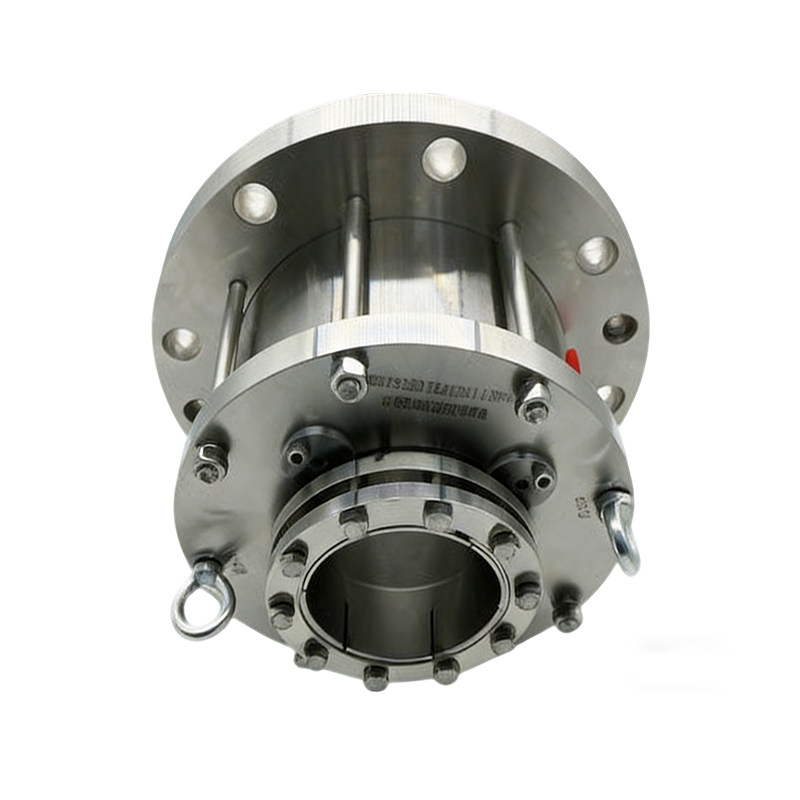

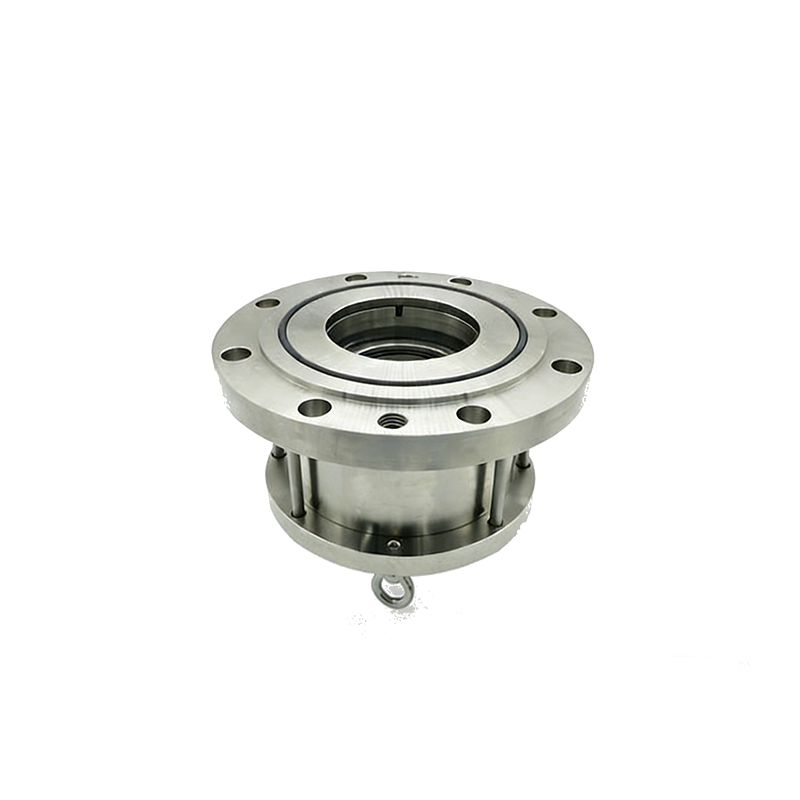

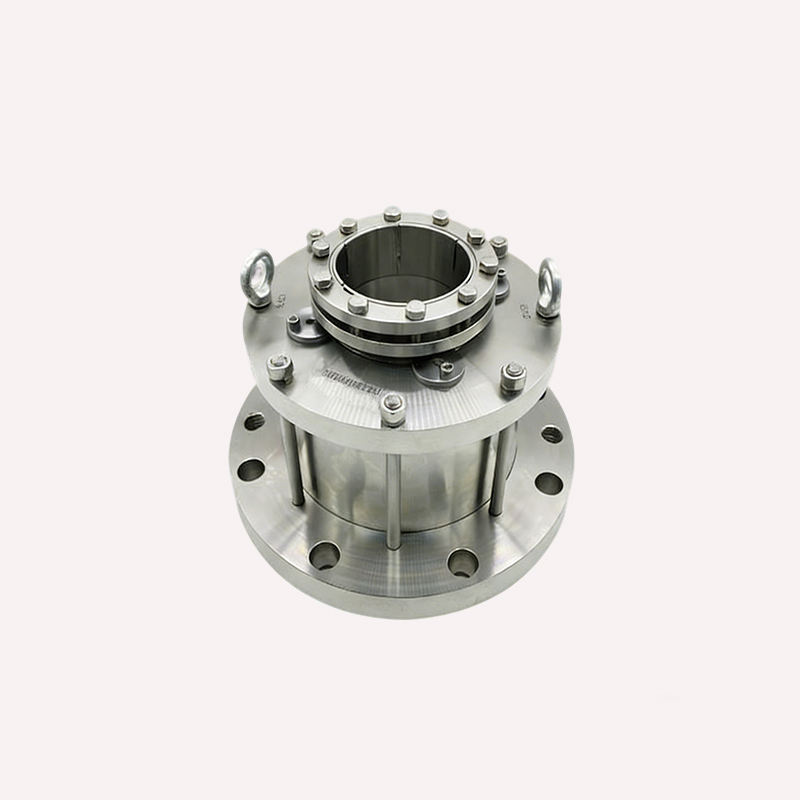

The 2004 and 2005 agitator mechanical seals are designed for top-driven vertical agitation equipment. They feature a balanced, double-face cartridge design with bearing transmission. The stationary structure supports the sealing assembly and helps maintain stable operation.
These vertical agitator mechanical seals use an internal flange mounting and external multiple springs. The cartridge design simplifies installation and maintenance.
Key Features
- Balanced, double-face mechanical seal design.
- Cartridge construction for convenient installation.
- Bearing transmission for stable operation.
- Stationary structure with bearing support.
- Externally mounted multiple springs.
- Internal flange mounting.
- Designed for top-driven vertical agitation equipment.
- Suitable for applications without strict leak-tightness requirements.
Model Differences
Model 2004
Model 2004 is the standard design in this series. It combines a balanced, double-face cartridge structure with bearing transmission.
Model 2005
Model 2005 is an extended version of Model 2004. It adds an internal bearing to support the sealing assembly and improve operating stability.
Applications
The 2004 and 2005 agitator mechanical seals mainly serve top-driven vertical agitation equipment. They suit agitator applications without strict leak-tightness requirements.
These models can also replace Burgmann M481 mechanical seals
