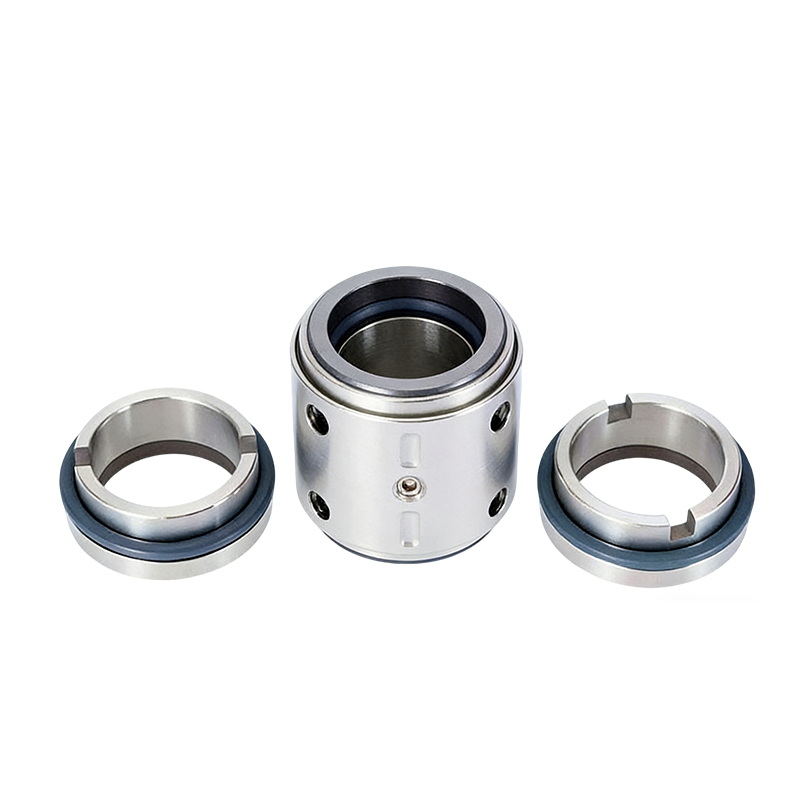

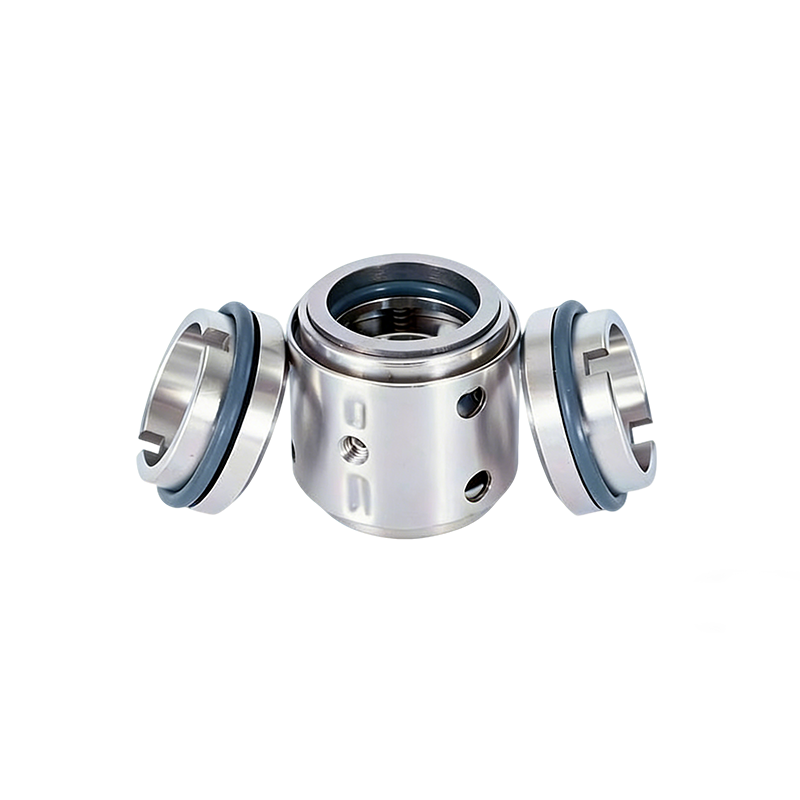

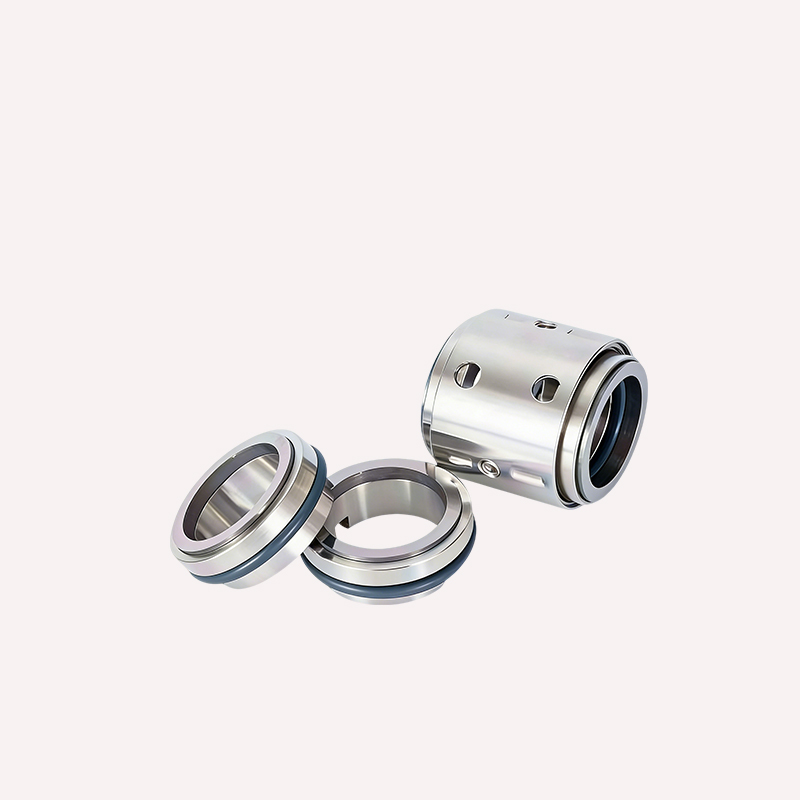

224UU mechanical seal is double-end, unbalanced, multi-spring construction. The multi-spring design ensures balanced loading on the sealing faces.224UU mechanical seal featuring a back-to-back structure, it forms a reliable double seal arrangement. Widely applied in various pumps and mixers, this seal serves as a direct replacement for EagleBurgmann 224UU mechanical seals.
Mechanical Seal, Mechanical Seal, mechanical seal for pump
224UU
Materials:
Sealing ring:Creamic,SiC,TC
Elastomers: NBR,EPDM,FKM
Springs: 304,316
Metal Parts: 304,316,316L
Process condition:
Pressure：0～1Mpa
Temperature：-10℃～120℃
Line speed：≤15m/s
Shaft size：20～120mm
Mediums: clean water, sewage water, oil and other moderately corrosive fluids.
