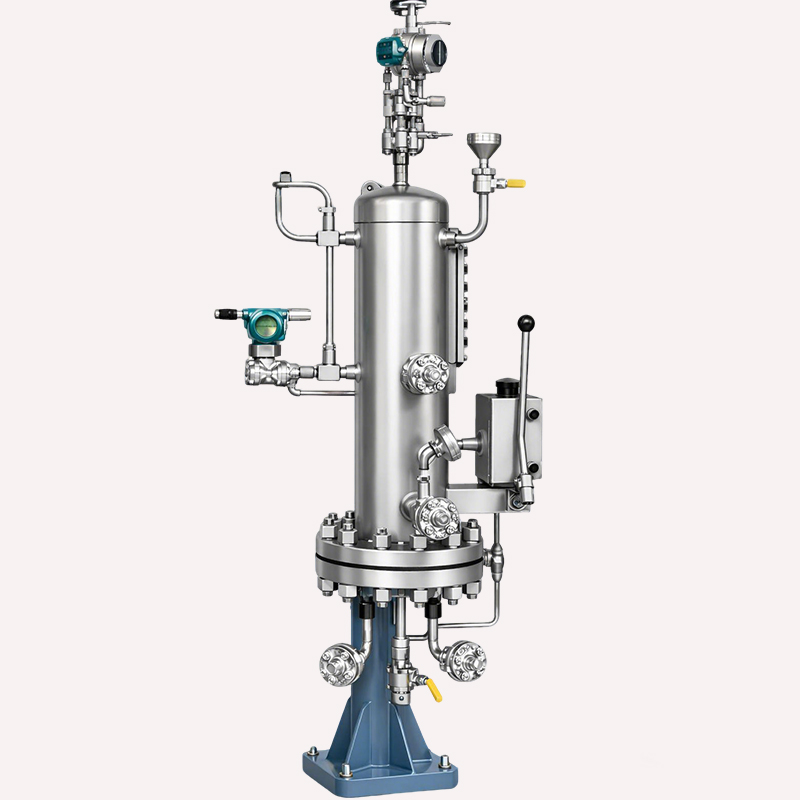

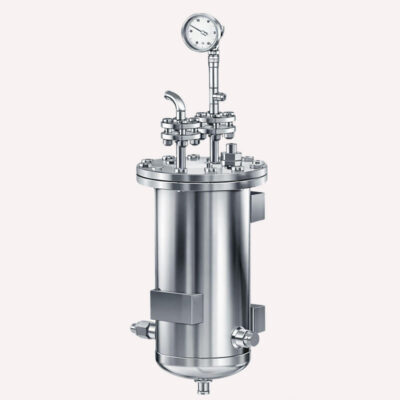

API Plan 53A (Pressurised Vessel) | API 682 Piping Plan for Mechanical Seals

API 682 Plan 53A is a pressurized barrier fluid system for dual mechanical seals in Arrangement 3. The Plan 53A reservoir supplies clean, pressurized barrier fluid to the mechanical seal. It helps maintain stable sealing conditions and reliable operation.

Pressurized barrier fluid supply: Supplies clean barrier fluid to dual mechanical seals and maintains barrier fluid pressure above the process pressure.
External pressure connection: Connects to an external pressure source, commonly nitrogen, to pressurize the barrier fluid. Pressure control, check, and safety relief components support reliable operation.
Monitoring and alarm options: Supports level indicators, level switches, pressure gauges, and pressure transmitters for local monitoring and remote alarms.
Cooling capability: An optional cooling coil or heat exchanger connection helps improve heat removal for high-temperature mechanical seal applications.
Integrated piping and valves: Integrated piping and valve arrangements simplify barrier fluid filling, venting, draining, inspection, and maintenance.
Skid-mounted configuration: The system is available in a skid-mounted configuration with standardized connections for convenient transportation and faster on-site installation.

API 682 Plan 53A is a barrier fluid supply system for pressurized double mechanical seals. The system uses an external pressure source to pressurize the barrier fluid in the reservoir. During pump operation, a pumping ring or thermosiphon effect circulates the barrier fluid through the seal system.

The system delivers clean and stable barrier fluid to the seal faces. It provides lubrication and removes frictional heat from the sealing area. It also helps reduce leakage and prevent fluid coking.

API Plan 53A suits applications with strict leakage control requirements. It is suitable for flammable, explosive, or toxic process media. The system also supports applications requiring minimal or zero external emissions.

Cooling, measurement, alarm, and interlock functions can be configured according to project requirements. These options support easier on-site maintenance and operational management.
