API 682 plan 54
,

API Plan 54 Forced Circulation Cooling System | API 682 Piping Plan for Mechanical Seals

  • Forced Circulation by External Pump

    • Provides a stable and controllable barrier fluid flow rate.
    • Supports effective seal face lubrication and cooling.

    External Pressurized Fluid Supply

    • Maintains barrier fluid pressure above seal chamber pressure.
    • Helps prevent process fluid from entering the seal chamber.

    Efficient Heat Exchange Cooling

    • Supports plate-and-frame, shell-and-tube, or air-cooled heat exchangers.
    • Provides effective heat removal for high-temperature applications.

    Online Filtration and Purification

    • Supports filters, magnetic filters, or bypass filtration systems.
    • Helps maintain barrier fluid cleanliness and protect seal faces.

    Comprehensive Instrumentation and Interlocking

    • Includes pressure gauges, thermometers, level gauges, and optional differential pressure indicators.
    • Safety valves, alarms, and interlocking interfaces can be configured as required.

    Skid-Mounted Modular Design

    • Integrates valves, piping, and instrumentation into a compact package.
    • Single-pump and multi-pump configurations are available for different system requirements.
Categories: , Tag:

API Plan 54 is a forced circulation system for dual pressurized mechanical seals. It provides clean, pressurized barrier fluid from an independent external source.

An external pump or pressure source continuously circulates the barrier fluid. The fluid passes through cooling and filtration components before entering the seal chamber. Barrier fluid pressure remains higher than seal chamber pressure during normal operation.

This circulation provides reliable lubrication and cooling for the seal faces. It also helps prevent process fluid from entering the seal chamber. Controlled fluid temperature and cleanliness can improve seal performance and operational stability.

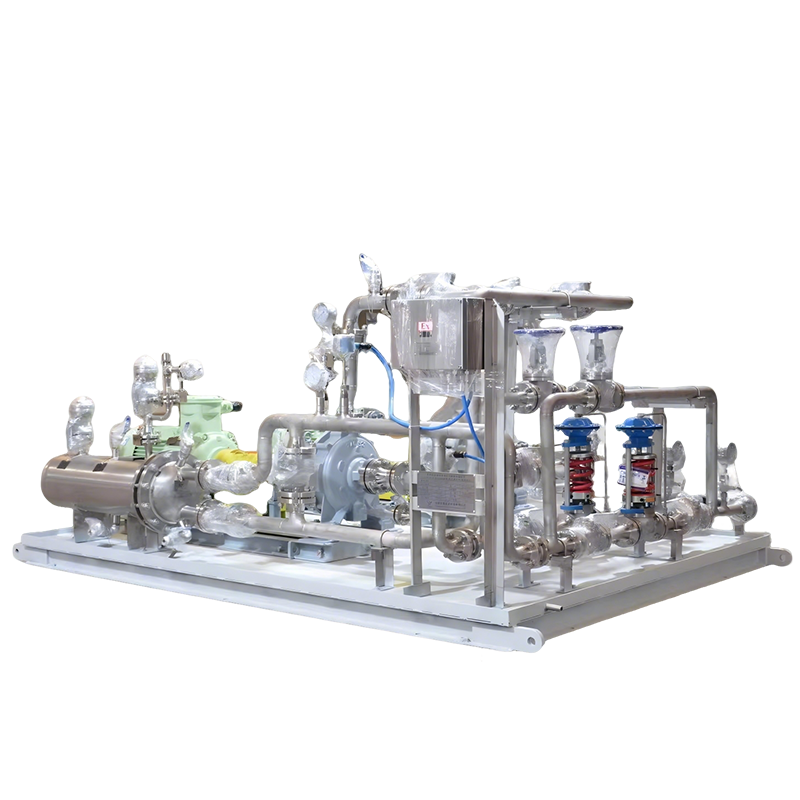

The system is typically supplied as a skid-mounted package for convenient installation and maintenance. Coolers, filters, instrumentation, alarms, and interlocking functions can be configured according to operating conditions.
