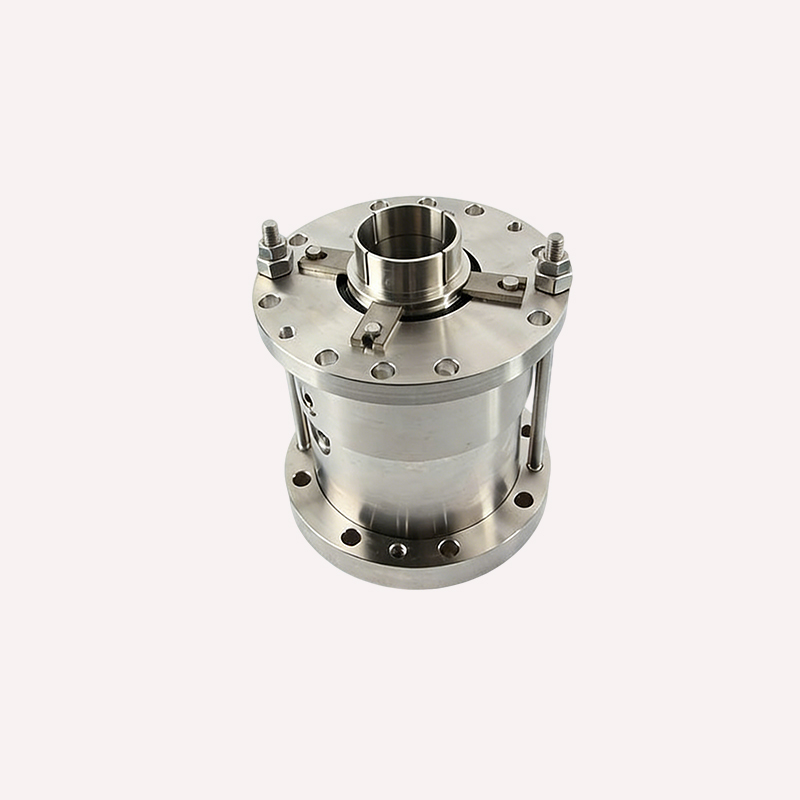

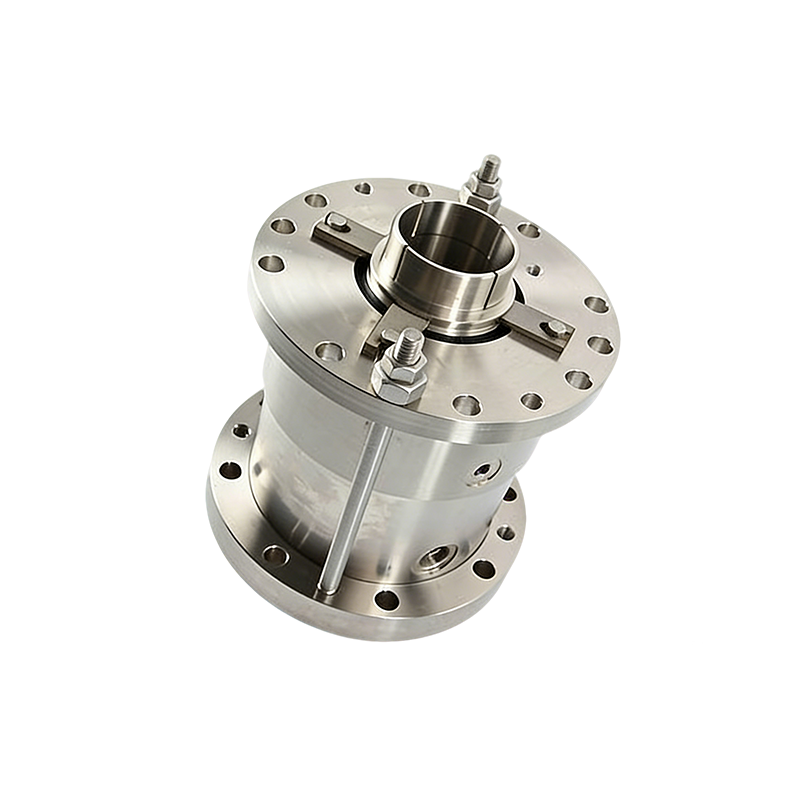

Type M461 is an unbalanced,double end agitator cartridge seal. It operates independently of the direction . M461 mechanical cartridge seal is suitable for top entry drives and glass-lined vessels.It is widely used in petrochemicals, chemicals, pharmaceuticals, and food and beverage industries. This cartridge mechanical seal is particularly well-suited for critical equipment such as agitators and reactors, where reliable performance under challenging conditions is essential.
Mechanical Seal, Mechanical Seal, mechanical seal for mixer &agitator
M461
Seal Ring: SiC, Carbon,TC
Elastomers: FKM,NBR,EPDM
Springs: 304,316,HC276
Metal Parts: 304,316
Process condition:
Shaft size : 40~160mm
Pressure: ≤1.6Mpa
Temperature: – 40 ºC~ 200 ºC
Line speed: ≤5m/s
