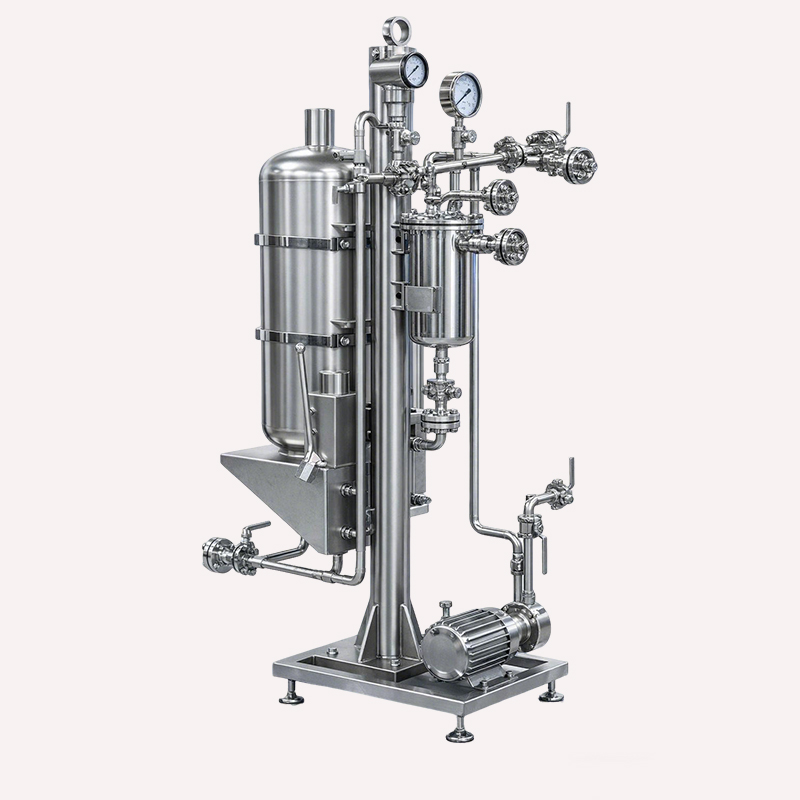

API Plan 53B (Bladder Accumulator) | API 682 Piping Plan for Mechanical Seals

Bladder-type accumulator pressurization: The bladder separates the gas from the barrier fluid. This design reduces direct gas-fluid contact and limits gas dissolution in the barrier fluid. It supports reliable operation in high-pressure and demanding applications.

Closed-loop barrier fluid circulation: Clean barrier fluid circulates between the inner and outer seal faces. A pumping ring or circulation structure maintains fluid movement during operation. This helps provide continuous lubrication and heat removal.

Integrated cooling capability: An integrated cooler or heat exchanger helps remove heat from the barrier fluid. Stable fluid temperature helps maintain consistent seal face operating conditions.

Pressure monitoring and alarm: Pressure instruments monitor barrier fluid pressure during operation. Upper and lower pressure limits support refill management and alarm functions. This helps operators identify abnormal pressure changes in time.

Standardized service connections: The system provides connections for filling, draining, venting, and pressure or temperature monitoring. These interfaces simplify system maintenance, inspection, and on-site operation.

Categories: API Piping Plan, Mechanical Seal

Description

API 682 Plan 53B is a pressurized barrier fluid system for dual mechanical seals. The system uses a bladder-type accumulator to pressurize the barrier fluid. It maintains clean and stable barrier fluid circulation between the two seal faces.

The barrier fluid provides continuous lubrication and removes frictional heat from the sealing area. The system maintains barrier fluid pressure above the seal chamber pressure. This pressure difference helps prevent process fluid from entering the barrier fluid system.
