TYPE SE2,SE2C,SE2-AP mechanical seal are double-face mechanical seal with multi-spring, balanced design, non-directional rotation, stationary structure and pin transmission. Its stationary spring configuration is ideal for high operating speeds. All springs are isolated from sealed media to avoid jamming issues. The piston design enables excellent axial displacement for wear compensation.TYPE SE2,SE2C,SE2-AP features easy installation and stable, reliable performance.TYPE SE2,SE2C,SE2-AP mechanical seal is widely applied to papermaking equipment, slurry pumps, pressure screens and chemical flue gas desulfurization systems, as well as power plants, mining, oil refining, alumina plants, food processing and pharmaceutical industries. This seal serves as a high-quality alternative and direct replacement for Sulzer Safematic series mechanical seals.
Mechanical Seal, Mechanical Seal, mechanical seal for pump

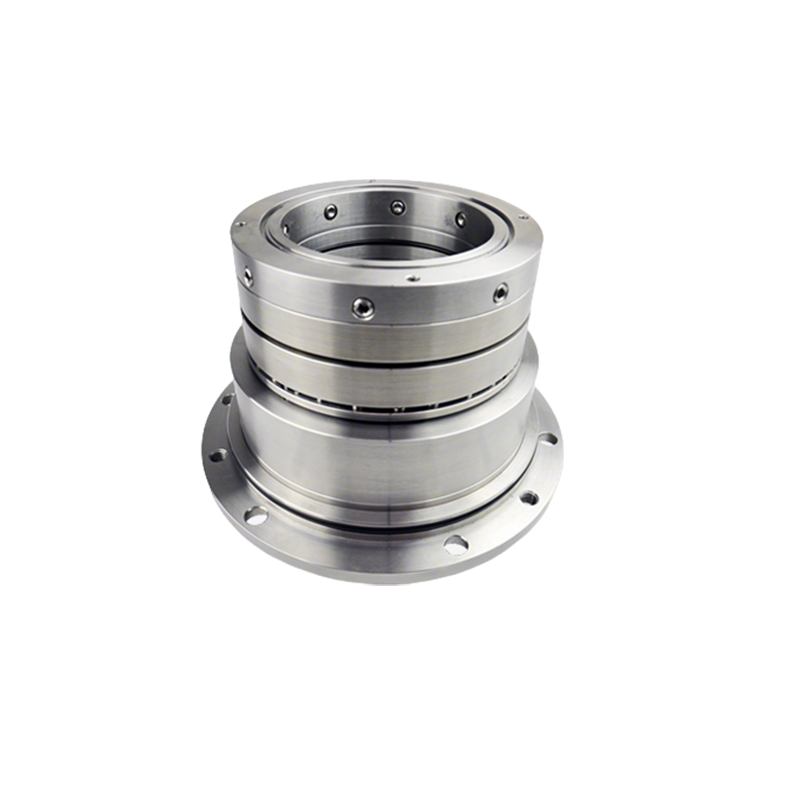

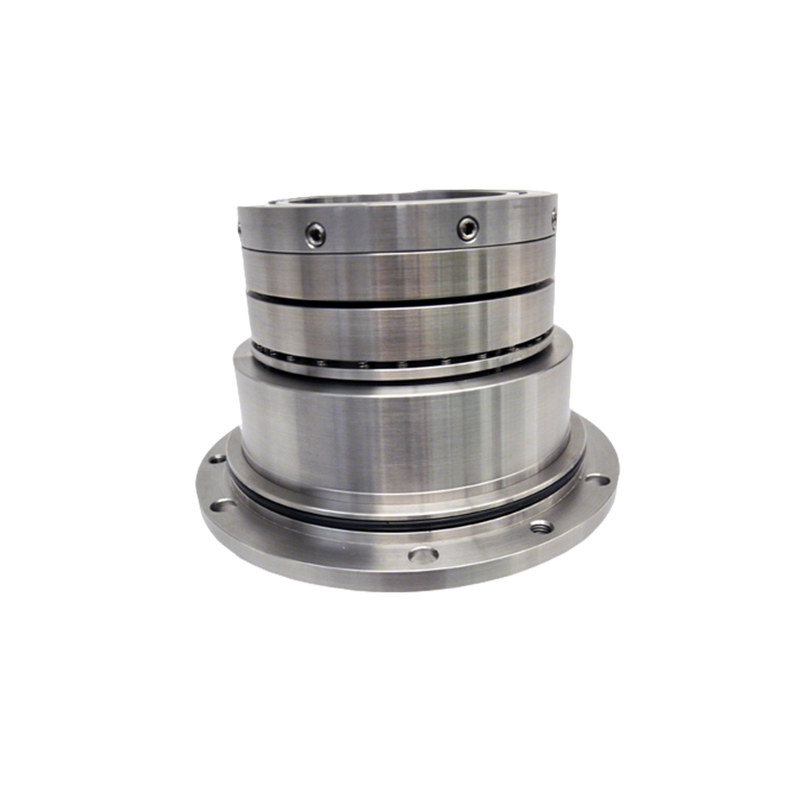

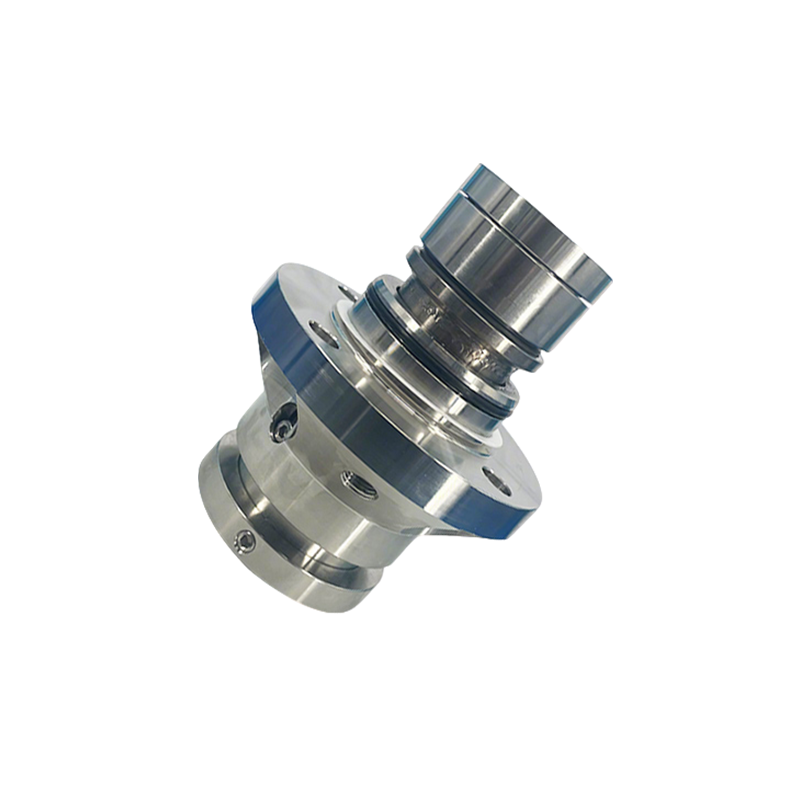

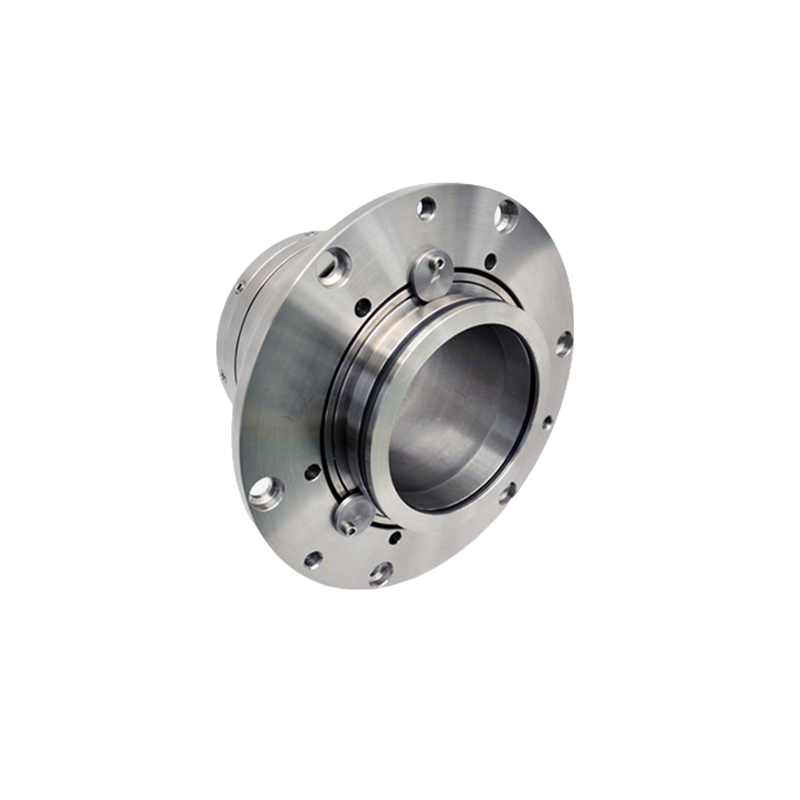

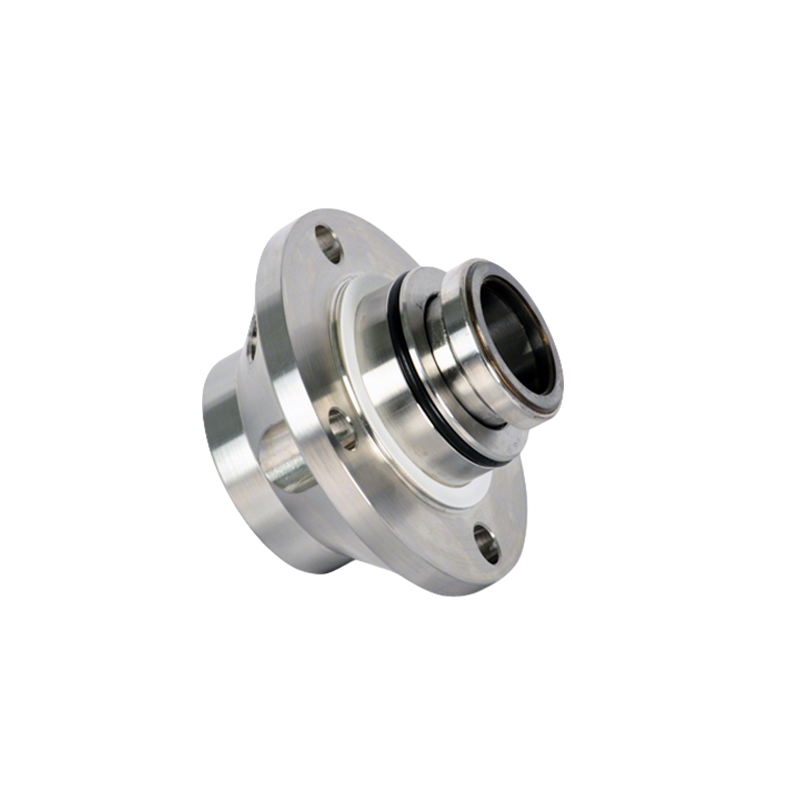

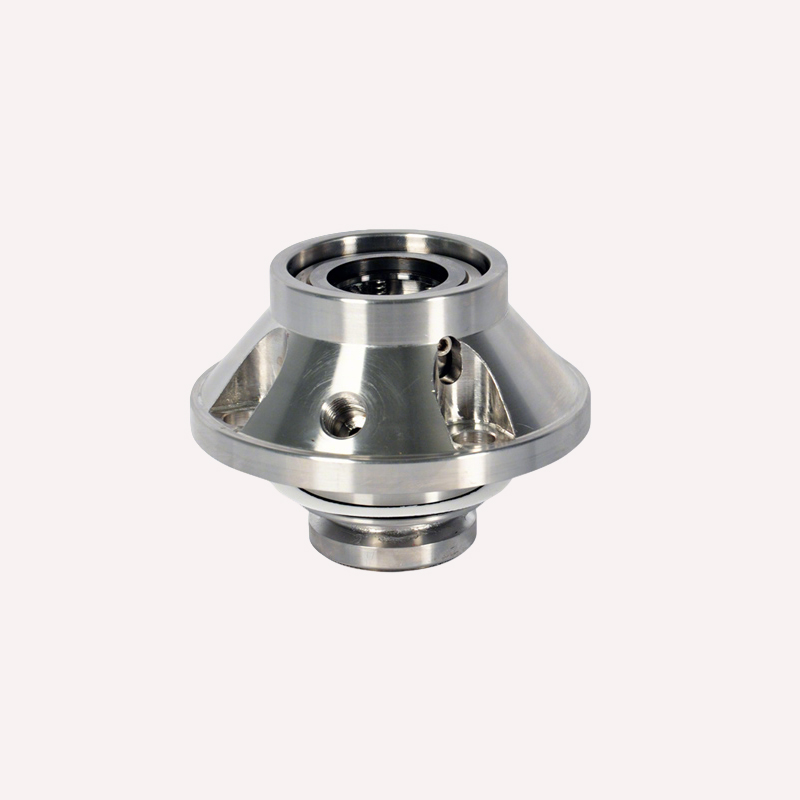

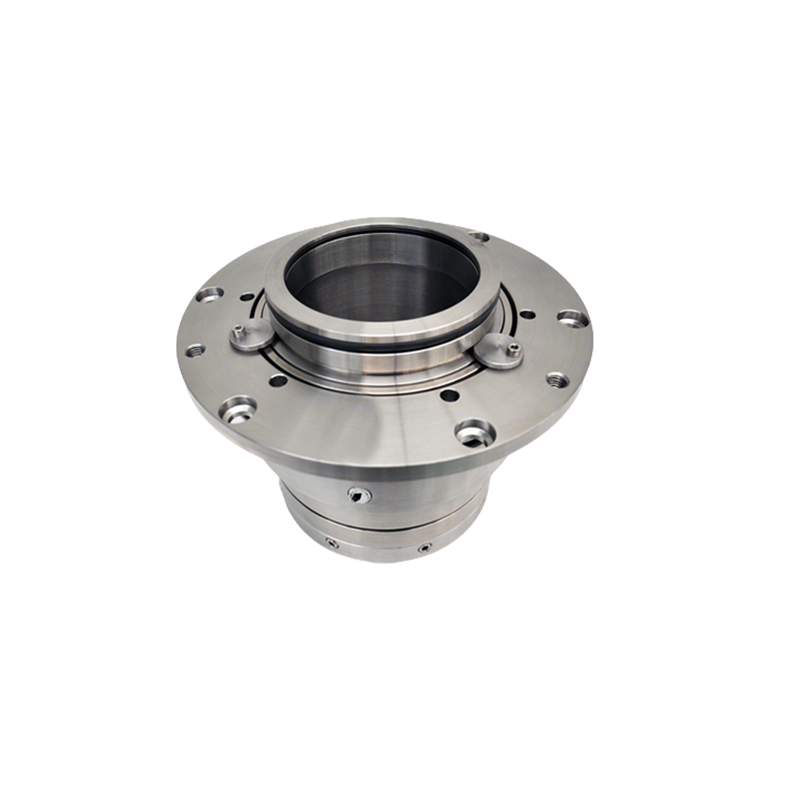

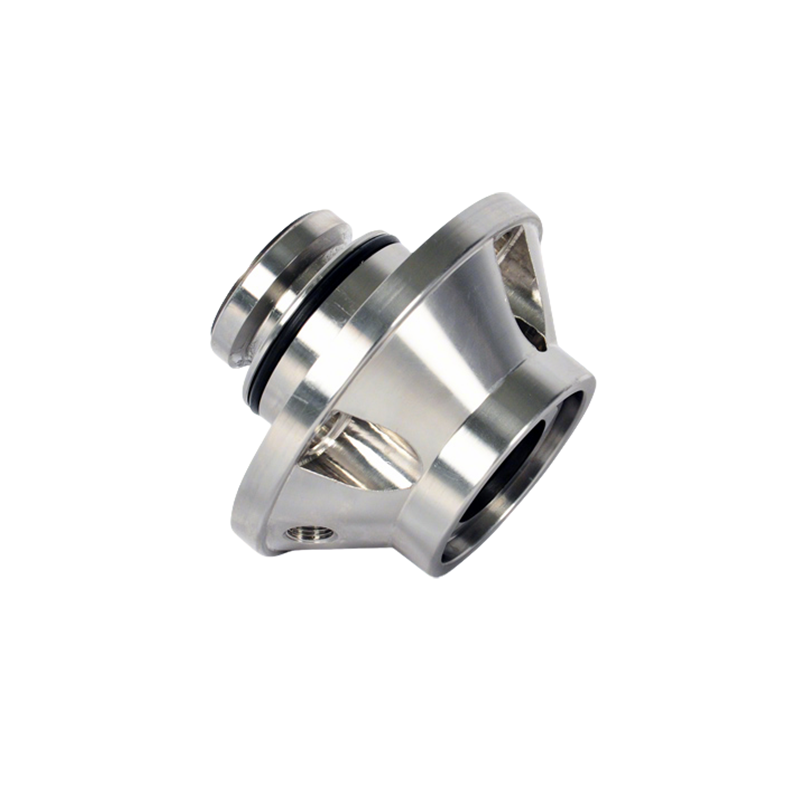

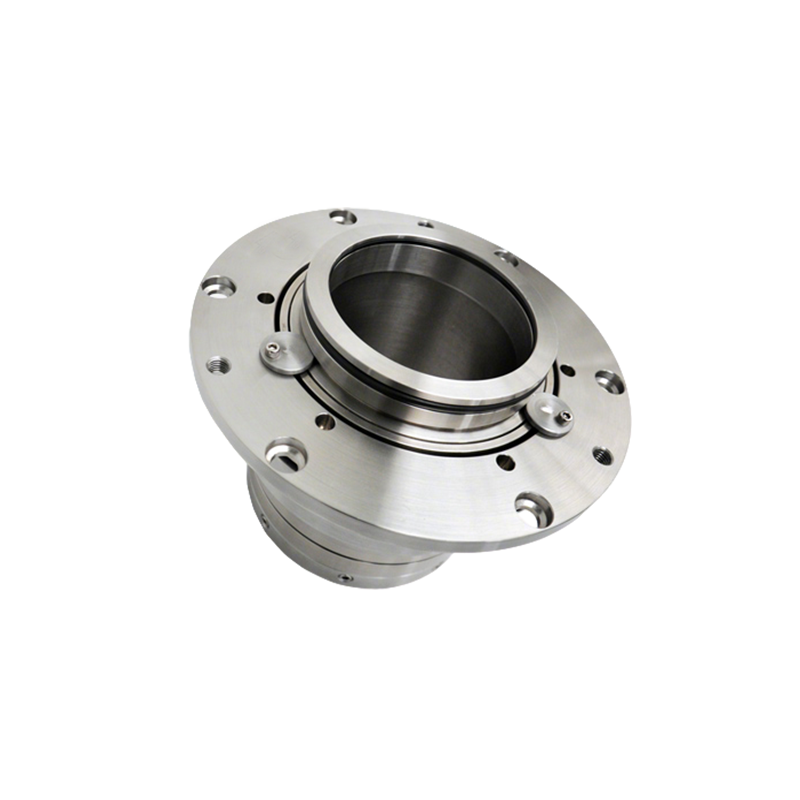

TYPE SE2,SE2C,SE2-AP Mechanical Seal for Slurry Pumps and Papermaking
TYPE SE2,SE2C,SE2-AP mechanical seals feature a balanced, multi-spring design with stationary springs and non-directional rotation. Suitable for slurry pumps, papermaking equipment, pressure screens, and FGD systems.
Operating Parameters:
Pressure：0～2Mpa
Temperature：-20℃～180℃
Line Speed：≤20m/s
Shaft size：30~100mm
Mediums: oil, water, paper pulp, cypsum slurry, acid, alkali, solvents and other solid particle and high viscosity mediums.
Application: Paper-making Equipment, Alumina Plants, Flue Gas Desulphurization, Deashing System and Slurry Pumps.
Materials:
Sealing ring:SSiC,SiC,TC
Elastomers:FFKM, FKM,PTFE,EPDM
Springs: 304,316,HC-276
Metal Parts:410S,304,316,316L,2507,2205
