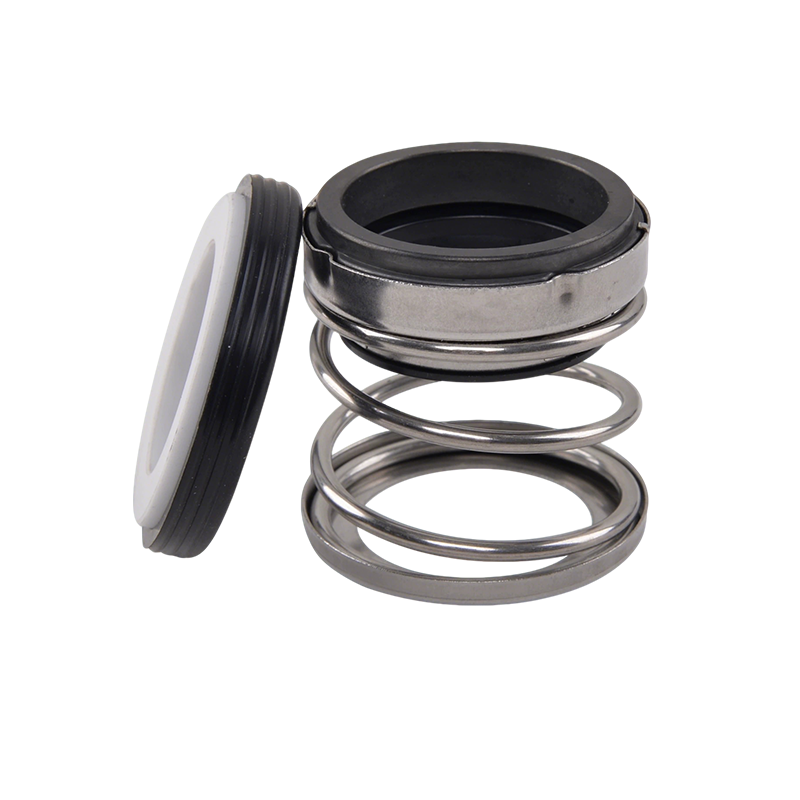

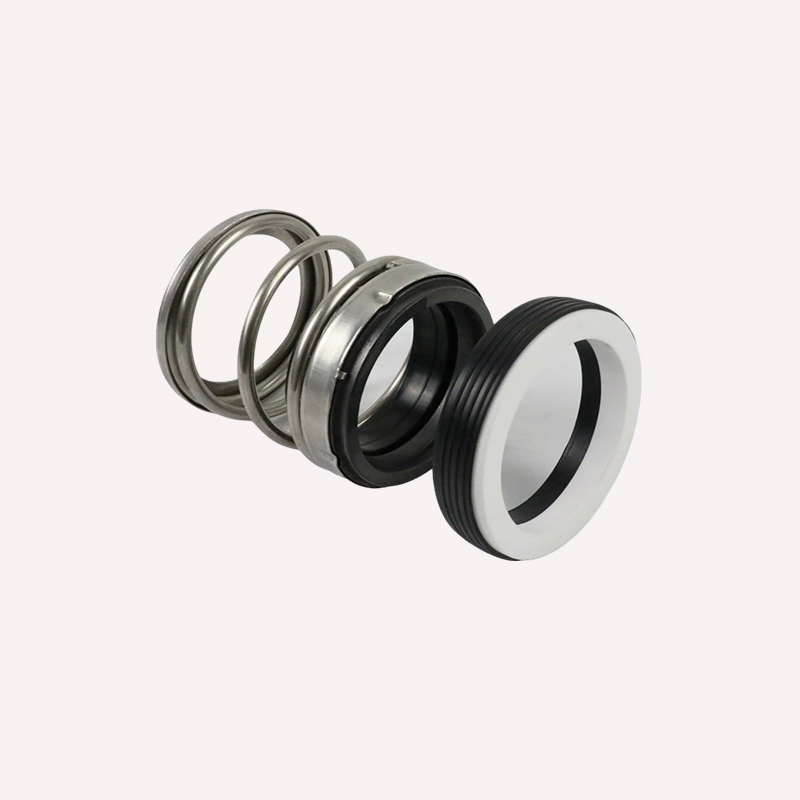

The EA560 Elastomer Bellows Mechanical Seal is a single-end, unbalanced mechanical seal designed as a replacement for the original EagleBurgmann EA560. It features a loosely inserted seal face, elastomer bellows, and bellows-driven torque transmission. The seal face provides self-adjusting capability, helping accommodate shaft misalignment and deflection during operation.
The elastomer bellows can stretch and contract to support automatic compensation for shaft movement. Its optimized contact length with the shaft provides a balance between easy assembly and reliable torque transmission. The bellows-driven design also supports independent directions of rotation, making the EA560 suitable for various rotating equipment.
The sliding parts are manufactured in-house, allowing greater flexibility for special material requirements and customized sealing solutions. The EA560 offers a compact structure, good interchangeability, easy installation, and stable sealing performance.
The EA560 is designed as a direct replacement for EagleBurgmann EA560 mechanical seals, providing a compatible sealing solution for maintenance and replacement applications.
